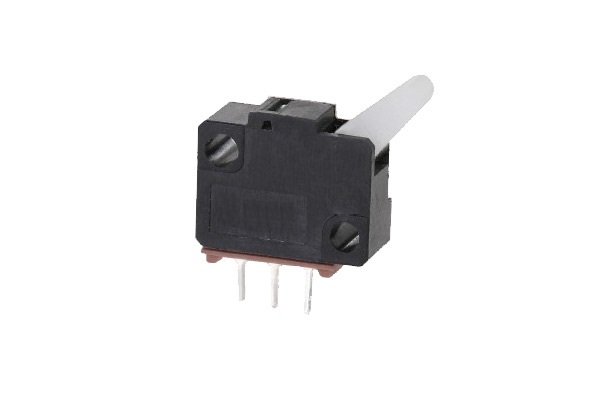

D01-01P100
| Description |
| Name：D01-01P100 |
| Feature：Rating 0.1A 12V DV / 50 μA 3V DC Contact Resistance 100 m Ω Max Insulation Resistence 50 MΩ Min Voltage proofAC 50V （50-60Hz） 1 Minute Eletrical Life 100,000 cycles (Min) |
| Ratings：0.1A 12V DV / 50 μA 3V DC |
| Electrical Life：100,000 cycles |
| Mechanical Life：100,000 cycles |
| Operating Temperature：- 25℃～ + 80℃ |
| Safety Certificate： |

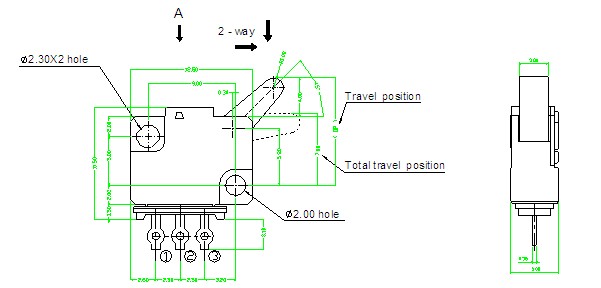

Drawing
